Pipe and Valves
Easy Assembly
Pipe and Valves
Easy Assembly
HIGHLIGHTS

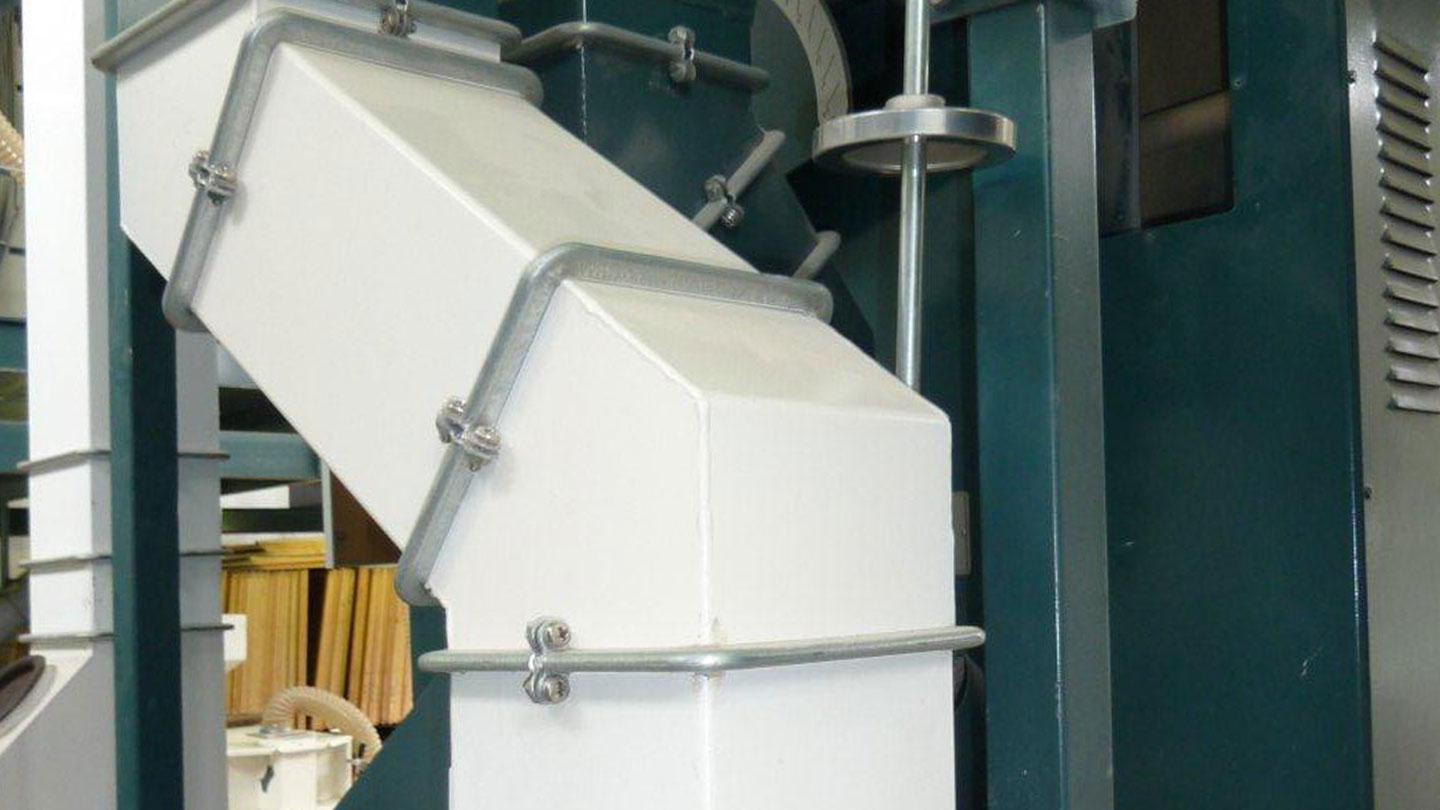

- Cimbria’s product range of piping, sliding valves and valves covers square piping for the gravity flow of grain and other free-flowing products..
- Square spouting provides higher capacity in relation to cross section. Square spouting also means less friction and therefore requires shallower angles than round ducts which, in turn, means lower built-in height.
- The grain piping product range also includes various types of valves for diverting the flow of material, a number of sliding valves, bends, junction boxes, grain brakes and various types of wear-liners.
Product Overview
Q-Spouts
The type denomination refers to the square cross section of the spout, e.g. a Q16 has an external dimension of 160 mm x 160 mm.
Q16, Q20 and Q24 with flange and clip assembly.
Q30, Q40 and Q55 with flange assembly.
Standard and modular production ranging from Q16 to Q55 for up to 1,500 t/h wheat.
Piping/chutes in modular design. PEHD or HARDOX wear liner can be added where needed.
Bends are located in the piping system where falling grain will attain high speed, as this will result in unacceptable product damage and/or wear of the piping.
Standard modular design ranging from 7° to 52°.
Grain speed reducers.
Data Sheets
- Spouts, Clamps & Flanges type Q-20 Data Sheet - English
- Connecting Boxes & Adaptors type Q-24 Data Sheet - English
- Spouts, Clamps & Flanges type Q-16 Data Sheet - English
- Connecting Boxes & Adaptors type Q-30 Data Sheet - English
- Bends type Q-20 Data Sheet - English
- Bends type Q-24 Data Sheet - English
- Q-Spouting Programme Data Sheet - English
- Spouts, Clamps & Flanges type Q-30 Data Sheet - English
- Connecting Boxes & Adaptors type Q-20 Data Sheet - English
- Grain Brake Data Sheet - English
- Connecting Boxes & Adaptors type Q-16 Data Sheet - English
- Spouts, Clamps & Flanges type Q-40 Data Sheet - English
- Spouts, Clamps & Flanges type Q-24 Data Sheet - English
- Bends type Q-16 Data Sheet - English
TWO-WAY VALVES TYPE LM & LN FOR DIVERTING GRAIN FLOW
Two-Way Valves
Manually operated.
Motor/electrical actuator operated.
Pneumatically operated.
INSTALLED INTO GRAIN SPOUT TO REGULATE OR CUT OFF FLOW
Shutters
Manually operated.
Motor/electrical actuator operated.
Pneumatically operated
Rotary Valves
The air-lock valve is used for discharge of dust and other separated particles from systems working with vacuum or pressure. It is dustproof and is used as a pressure block between a cyclone and a dust collecting bag.
