Indented Cylinder Separator
Length Grading of all Granular Materials
Indented Cylinder Separator
Length Grading of all Granular Materials
HIGHLIGHTS
- Used for length grading of all granular materials, such as wheat, oat, maize, rice, fine seeds, lentils, sticks from sunflower or sugar beet, plastic particles, etc., as well as for the extraction of unwanted short or long admixtures.
- Through the inlet housing, the granular material to be graded flows into the interior of the rotating cylinder, whose cover is equipped with special deep-drawn teardrop or spherical-shaped pockets for the most precise length separation.

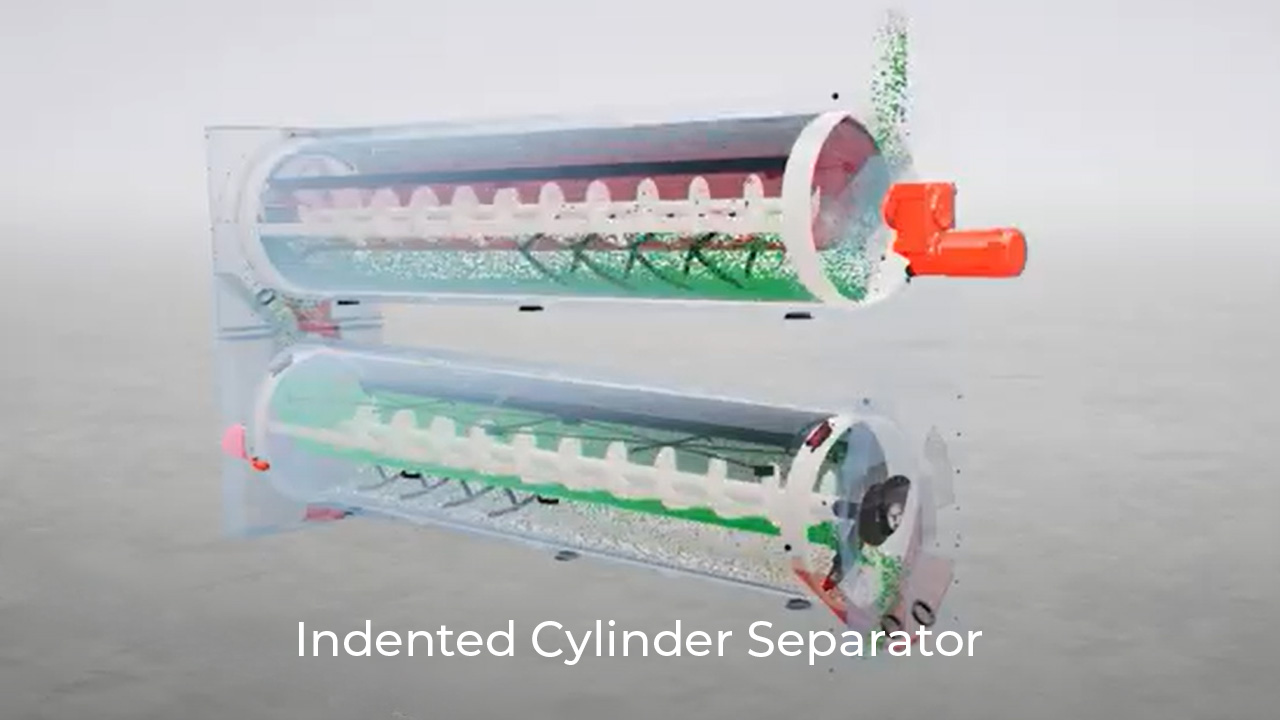

Indented Cylinder Separator Process
Product passes from the inlet housing into the interior of the rotating cylinder, the cover of which is provided with impressed pockets or so-called indents.
Grains that embed themselves in the indents are carried, and after a certain distance, fall out of the pockets into the trough and are discharged by a screw conveyor.
Grains which are larger than the indents remain inside the shell and are carried to the outlet where the shell empties into the outlet casing. Depending on the required grading, the incoming product is sorted according to roundness or length.
Product Overview

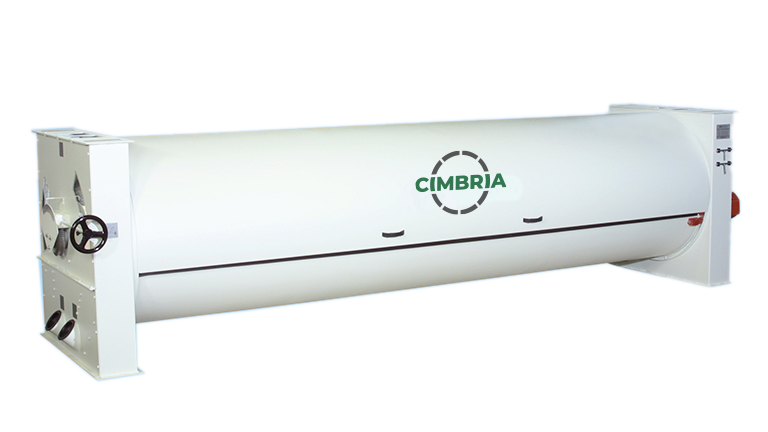

Indented Cylinder Separator
The indented cylinder separator is used for grading by length of all granular materials such as wheat, oats, fine seeds, lentils, for separating stalks from sunflower and beet seeds and for separating unwanted long or short product impurities. The size of grains can vary between 1.0 mm and 24 mm.
Depending on the required grading, the incoming product is sorted according to roundness or length.
Data Sheets
- Indented Cylinder Separator HSR 1030-16030 R-L Data Sheet - English
- Indented Cylinder Separator HSR 1030-16030 S-R-L Data Sheet - English
- Indented Cylinder Separator HSR 1020-16020 R-L Data Sheet - English
- Indented Cylinder Separator HSR 1010-16010 L Data Sheet - English
- Indented Cylinder Separator HSR LAB Data Sheet - English
- Indented Cylinder Separator HSR 1010-16010 R Data Sheet - English

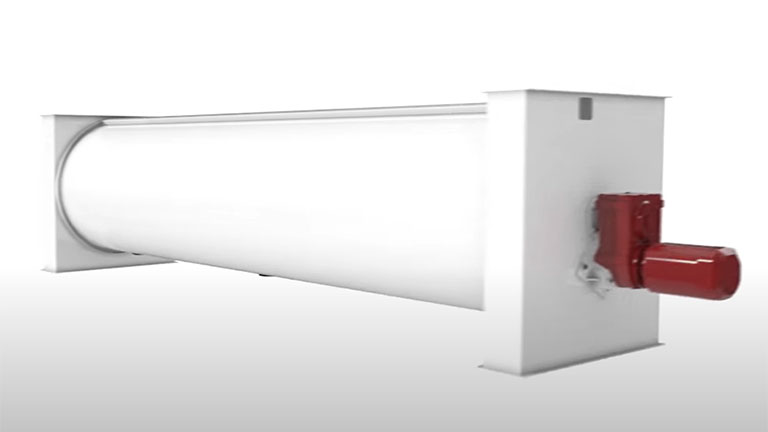

Take your cleaning to new lengths!
Unlock the potential of your granular products
See the principles of how our Indented Cylinder efficiently cleans wheat, oats, maize, rice, fine seeds, lentils, and more, removing unwanted short or long admixtures by length. It is crucial for length grading to ensure only the desired grains are collected. With Cimbria’s unique in-house manufacturing of cylinder segments, we guarantee top-notch quality and customization from the earliest stages of production.
Thinking about financing?
Related Articles
At Cimbria, we design, develop, manufacture and install custom-built solutions, from complete processing lines to large turnkey projects with highly advanced automation and management information systems.
Take Your Cleaning to New Lengths!
Our Indented Cylinder Separator is designed to efficiently clean and sort a variety of granular materials, including wheat, oats, maize, rice, fine seeds, lentils, sunflower sticks, sugar beet, and even plastic particles. By removing unwanted short or long admixtures, our separator ensures your products meet the highest standards.
RWA Serbia: Elevating Seed and Food Processing with Cimbria
Austrian company RWA (Raiffeisen Ware Austria) embarked on a transformative journey with Cimbria a decade ago.

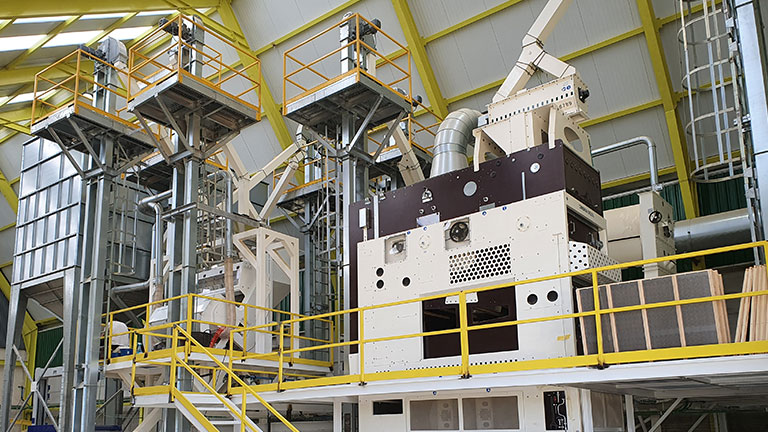

Agrosemillas, a Young and Future Oriented Reality in Spain
Bolstered by a strong business relationship, Agrosemillas asked Cimbria to build a turnkey cleaning plant in Cuenca, in Castiglia-La Mancia area.

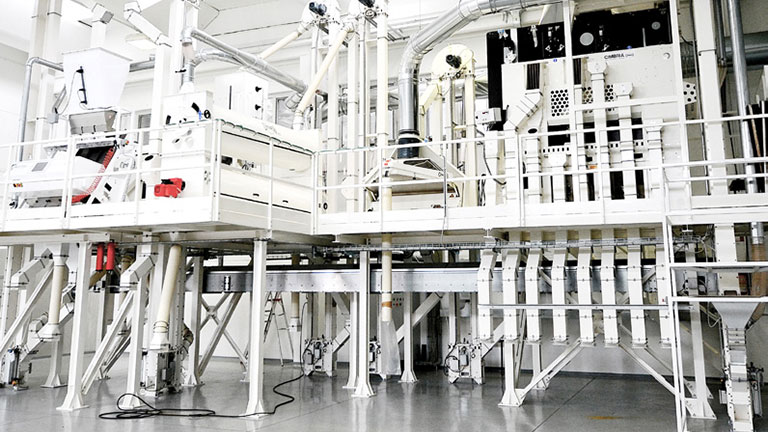

Seed Processing Line for Sprouts
Cimbria was able to provide Cooperativa Agricola Cesenate with a plant that can process seeds for human consumption oriented towards the sprout market.
Continued Supply for the Russian Market
Quality seed is highly valued not only in the Stavropol region, but also in the neighboring countries.

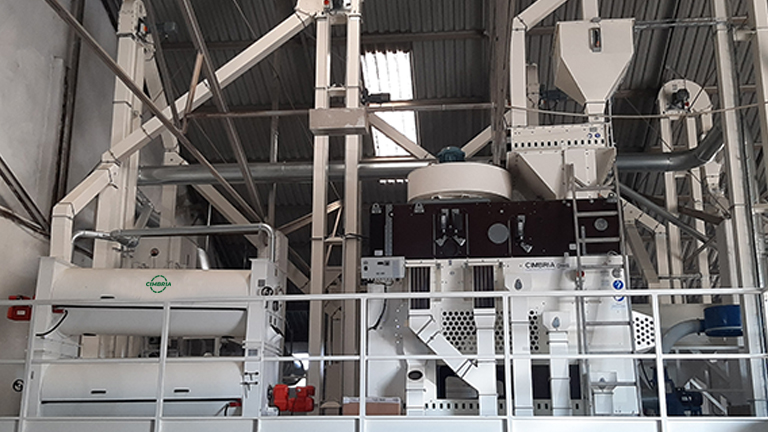

Cimbria Boosts Seed Production for Customer in Hungary
